CAT5E+2/18 AWG

Application


Construction Parameters:

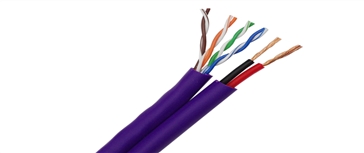

  Description 2 Pair Cat5E Type + 2C-18AWG Siamese Construction
  Video and Control Pairs
  Inner Conductor 0.0196"/0.50mm/24AWG Bare Copper
  Stranding Solid
  Insulation Material Polyethylene 0.008"/0.2mm
  Number of Conductors 4(2 Pair)
  Shield None
  Power Conductors
  Inner Conductor 18AWG Bare Copper
  Stranding 7×26AWG / 7×0.0145"
  Insulation Material PVC 0.008"/0.2mm
  Number of Conductors 2
  Shield None

Electrical Characteristics:
  Video and Control Pairs
  Temperature Rating -20튠to 60íŠ
  Operating Voltage 300 V RMS
  Max.Capacitance @1 KHz 14 pf/ft
  Nom.Impedance 100 Ohms
  Nom.Velocity of Propagation 66%
  DC Resistance per Cond. @ 20íŠ 26 Ohms/1M' Nom
  Insulation Colors Blue/White-Blue, Orange/White-Orange
  Power Conductors
  Temperature Rating -20튠to 60íŠ
  Operating Voltage 300 V RMS
  Max.Capacitance @1 KHz NA
  DC Resistance per Cond. @ 20íŠ 6.2 Ohms/1M' Nom
  Insulation Colors Black, Red

Overall Construction
  Jacket Type PVC
  Jacket Color Siamese-Gray
  Nom.O.D. 0.180" × 0.340"

Mechanical Properties
  Max.Recommended Pull Tension 33 lbs.
  Min. Bend Radius(Install) 3.40"


Order Informations:
  Marking KINGTONE KT0728 Video Over UTP 2 Pair Cat5E Type + 2C-18AWG Siamese
  Inner Package 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet
  Delivery time Normally 20-25 days after received the deposit.
